Industrial Touchscreen FAQ

Development & Integration of Projected Capacitive (PCAP) Touch Technology

pcap touch sensor
pcap touchscreen monitor

PCAP Touch Sensor
PCAP Touchscreen Assembly
PCAP Touchscreen Monitor

What are the Differences?

The terms "PCAP touch sensor," "PCAP touchscreen assembly," and "PCAP touchscreen monitor" represent different stages in the development and integration of projected capacitive (PCAP) touch technology.
Here's a breakdown of each:

  •  PCAP Touch Sensor

PCAP (Projected Capacitive) touch sensor is the foundational component that detects touch inputs. It consists of a transparent grid of conductive materials, typically indium tin oxide (ITO), arranged in X and Y axes. When a conductive object, like a human finger, approaches the surface, it alters the local electrostatic field, allowing the sensor to pinpoint the touch location. These sensors are known for their durability, high optical clarity, and multi-touch capabilities.



  •  PCAP Touchscreen Assembly

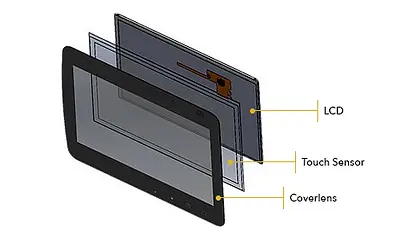

PCAP touchscreen assembly integrates the PCAP touch sensor with an LCD display. This integration can be achieved through methods like optical bonding, where the sensor is affixed directly to the display using a clear adhesive, eliminating air gaps and enhancing display clarity. The assembly may also include a protective cover glass, which can be customized in terms of thickness, shape, and printed designs. This combination results in a cohesive unit that offers both display and touch functionalities.



  • PCAP Touchscreen Monitor

PCAP touchscreen monitor is a complete, ready-to-use device that incorporates the PCAP touchscreen assembly within a housing. This monitor includes additional components such as a controller board, power supply, and various input/output interfaces (e.g., HDMI, USB). Designed for end-users, these monitors are commonly used in applications like point-of-sale systems, kiosks, industrial controls, and interactive displays. They offer plug-and-play functionality, requiring minimal setup.

Screenshot 2025-06-20 at 11.19.04 AM.png

In addition to our support, it's all about our product!

Multi-touch Support: PCAP touchscreens can typically detect multiple touch points simultaneously, enabling multi-touch gestures such as pinch-to-zoom and rotation. This feature enhances user interaction and functionality,



High Sensitivity and Accuracy: PCAP touchscreens are highly sensitive and offer precise touch detection, providing a smooth and responsive user experience. This accuracy is crucial in applications where precise input is required.



Durability: PCAP touchscreens are constructed with a glass overlay that makes them highly durable and resistant to scratches and abrasions. This durability makes them suitable for use in high-traffic public environments such as retail stores, airports, and information kiosks.



Optical Clarity: The glass overlay used in PCAP touchscreens provides excellent optical clarity, ensuring that the display remains sharp and vibrant. This feature is essential in applications where visual quality is critical, such as digital signage and interactive displays.



No Calibration Required: PCAP touchscreens do not require periodic calibration like some other touchscreen technologies, reducing maintenance requirements and ensuring consistent performance over time.



Wide Operating Temperature Range: PCAP touchscreens can operate over a wide temperature range, making them suitable for use in both indoor and outdoor environments.



Customization Options: PCAP touchscreens can be customized in terms of size, shape, and functionality to meet specific application requirements. This flexibility makes them suitable for a wide range of applications, from consumer electronics to industrial control systems.



Overall, PCAP touchscreens offer a combination of responsiveness, durability, and versatility that makes them an excellent choice for various interactive applications.
